Gate valve
DN 50, Rp 2, Kvs: 170, PN 25, Internal thread



  • Main function: Gate valve
  • Nominal size: DN 50
  • Connection size: Rp 2
  • Installation location: Supply or return
  • Shutoff: Yes
  • Kvs: 170
  • Operating temperature: -10 - 180 °C
  • Pressure rating: PN 25
  • Body material: Bronze
  • Medium: Water, Water-glycol mixture, Potable water
  • Connections: Internal thread
Art.-Nr.: 1663216
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes

Dimensions

Dimensions of article

Length Width Height Weight
71 mm 0 mm 145 mm 1,36 kg

Packing units

Type Qty. Length Width Height Weight
Carton 4 290 mm 195 mm 100 mm 5,65 kg
Carton 20 530 mm 300 mm 230 mm 29,12 kg
Unknown 480 1320 mm 1030 mm 840 mm 773,88 kg

Images

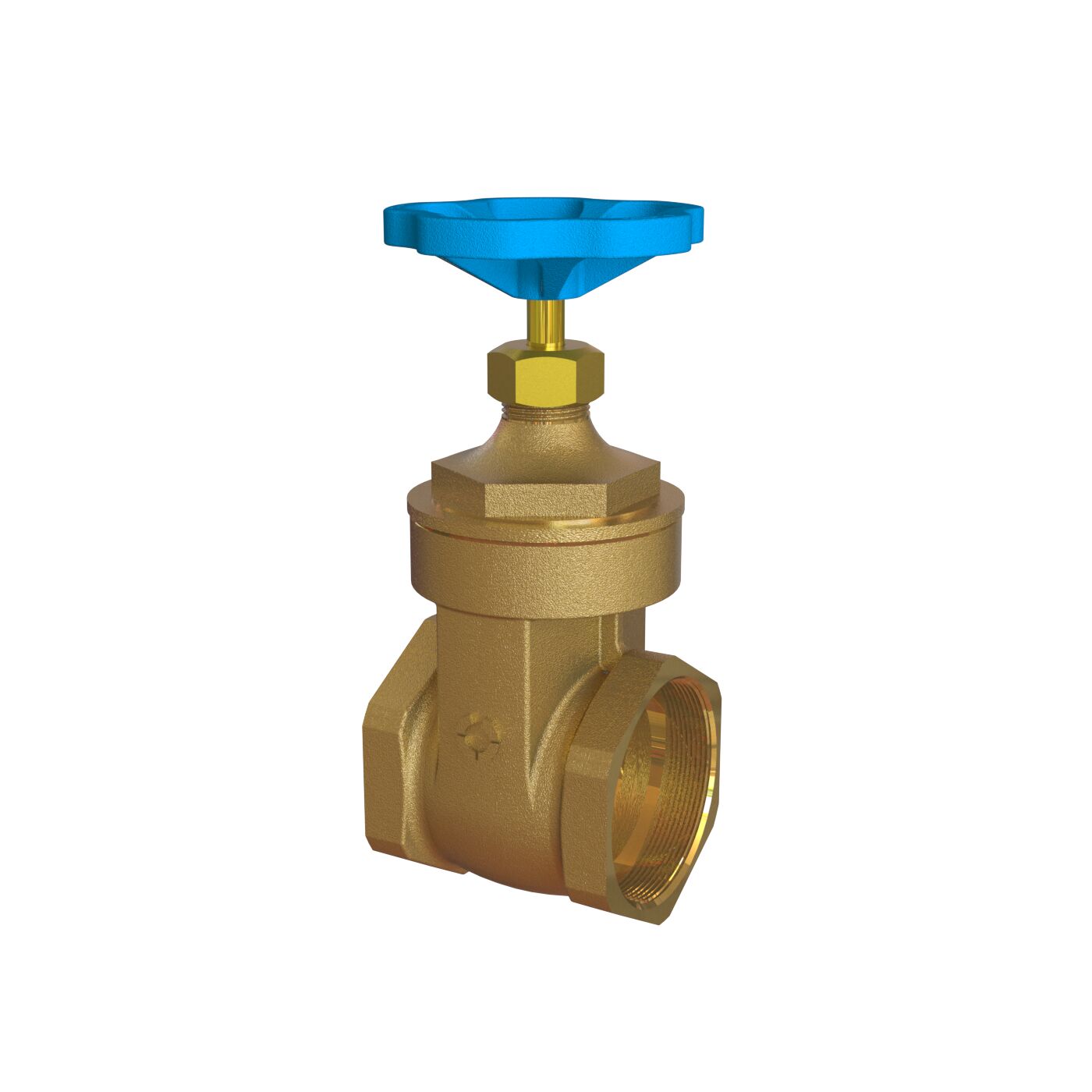

Product images

  File size
70,42 KB
  Size
1400 px x 1400 px
  Properties
  •  Clear product picture
  •  Cutout
Download

Documents

Technical data
