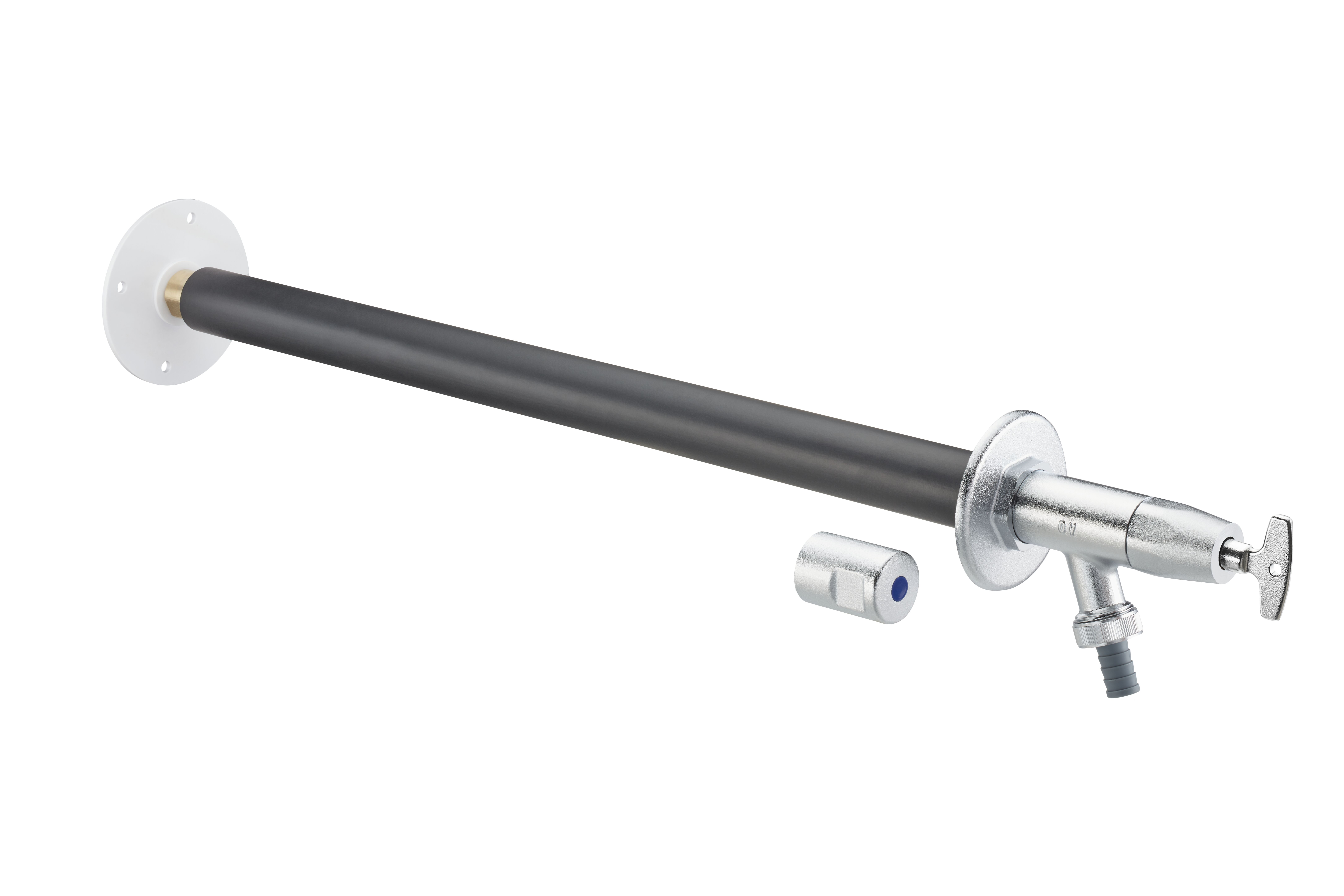

Aquastrom G Frost-proof outdoor tap
DN 15, for wall thickness 200 mm to 530 mm

Please wait!
Please wait!

The Aquastrom G is a frost-proof outdoor tap for potable water installations.

The Aquastrom G is shut off by means of a ceramic valve insert, which is placed on the inside of the masonry in a frost-proof manner. The integrated aerator ensures that the area prone to frost is drained immediately after water has been drawn.

The masonry duct can be adapted to the dimensions of the masonry using the cutting gauge. The permissible masonry thickness is between is between 200 mm and 530 mm. The socket spanner included in the scope of delivery protects the tap from unintentional operation.
No longer produced
Art.No.: 4205204
EAN: 4026755480726
Manufacturer: Oventrop GmbH & Co. KG
Subject to technical changes.
Download GAEB


Download tender text

Dimensions

Dimensions of article

Length Width Height Weight
600 mm 100 mm 50 mm 1,88 kg

Packing units

Type Qty. Length Width Height Weight
Carton 1 700 mm 135 mm 55 mm 2,28 kg
Carton 10 720 mm 300 mm 280 mm 23,64 kg
Europallet 160 1200 mm 800 mm 1270 mm 306,63 kg

Images

Product images

  File size
851,63 KB
  Size
8688 px x 5792 px
  Properties
  •  Clear product picture
  •  Cutout
Download
  File size
787,38 KB
  Size
6496 px x 6495 px
  Properties
  •  Clear product picture
  •  Cutout
Download

ETIM

Klassifizierung
ETIM 7.0
Property Value
Surface protection Chromium-plated
Material housing Brass
Nominal inner diameter DN 15
Housing material quality CuZn40Pb2 (CW617N)
